New Compact HZM BL750 Backhoe Loader
The HZM BL750 small backhoe loader is a compact, flexible and multi-functional machine. It is widely used for municipal maintenance, garden renovation, rural construction and other narrow-site light-duty projects, offering great cost performance for users.
1. Lightweight & High Working Capacity
2. Reliable Hydrostatic Driving System
3. Euro 5 Perkins Engine, Energy-saving & Eco-friendly
4. Electric Control Joystick, Easy Operation
5. Wide & Large Tires for Strong Site Adaptability
6. Quick Hitch & All-weather Working Design

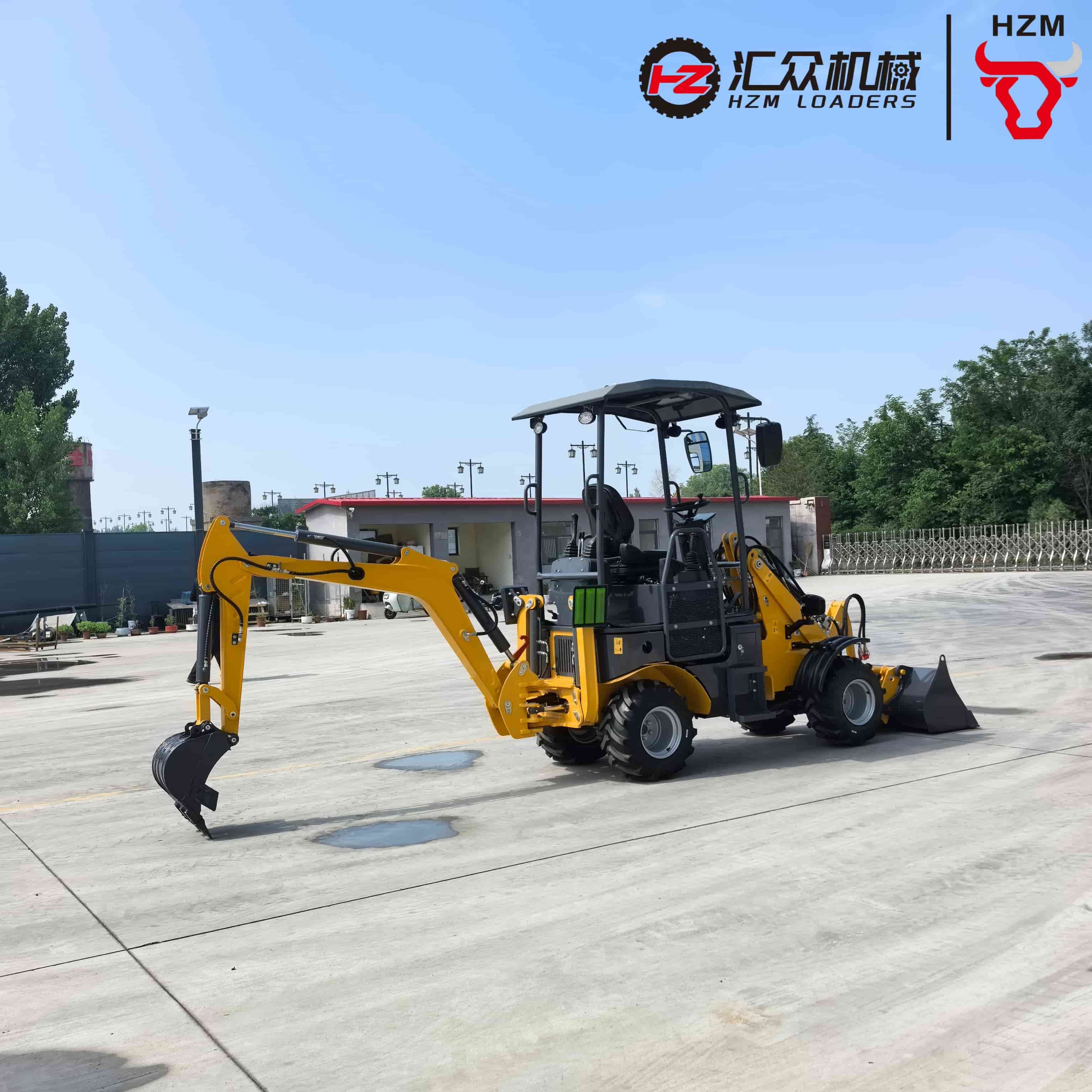

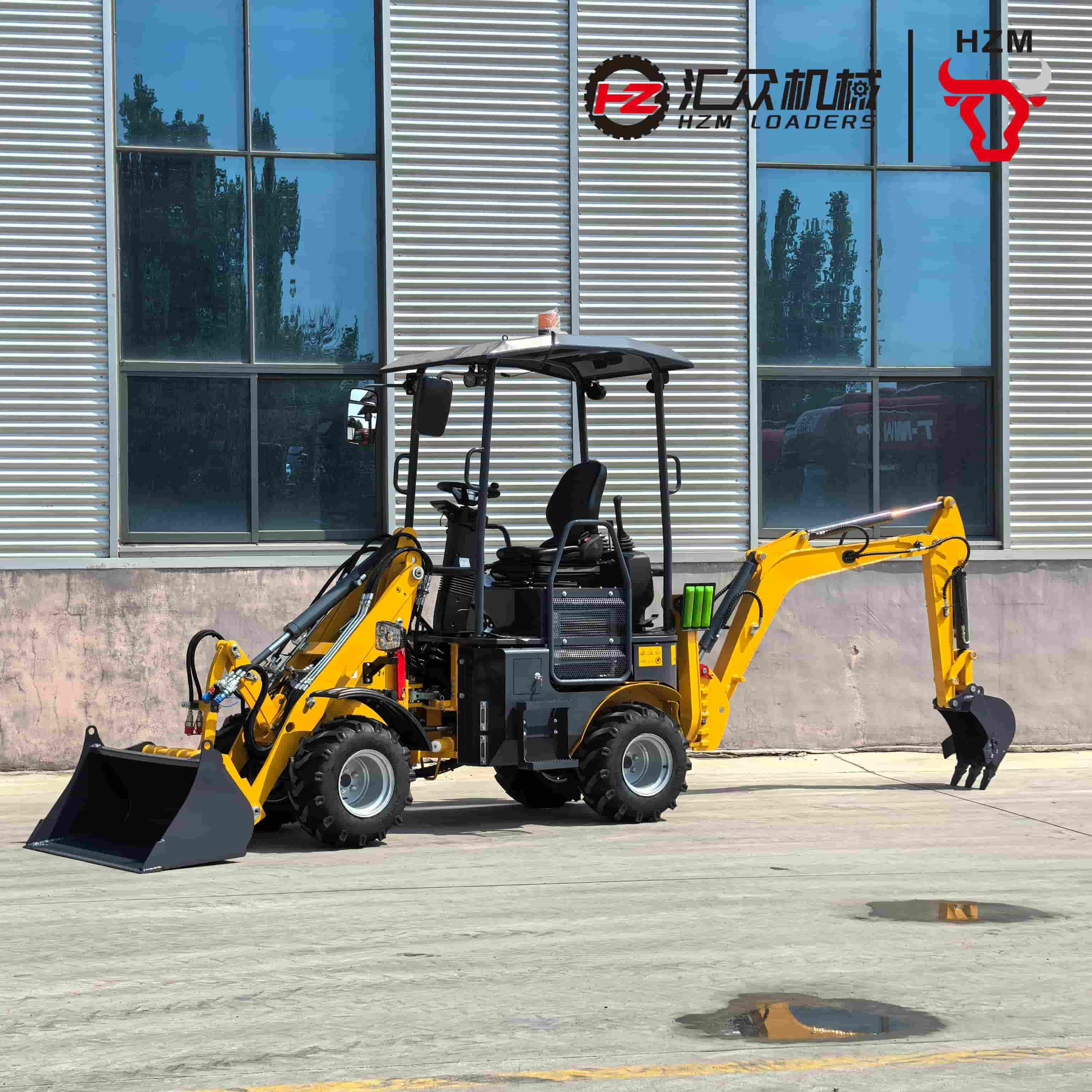

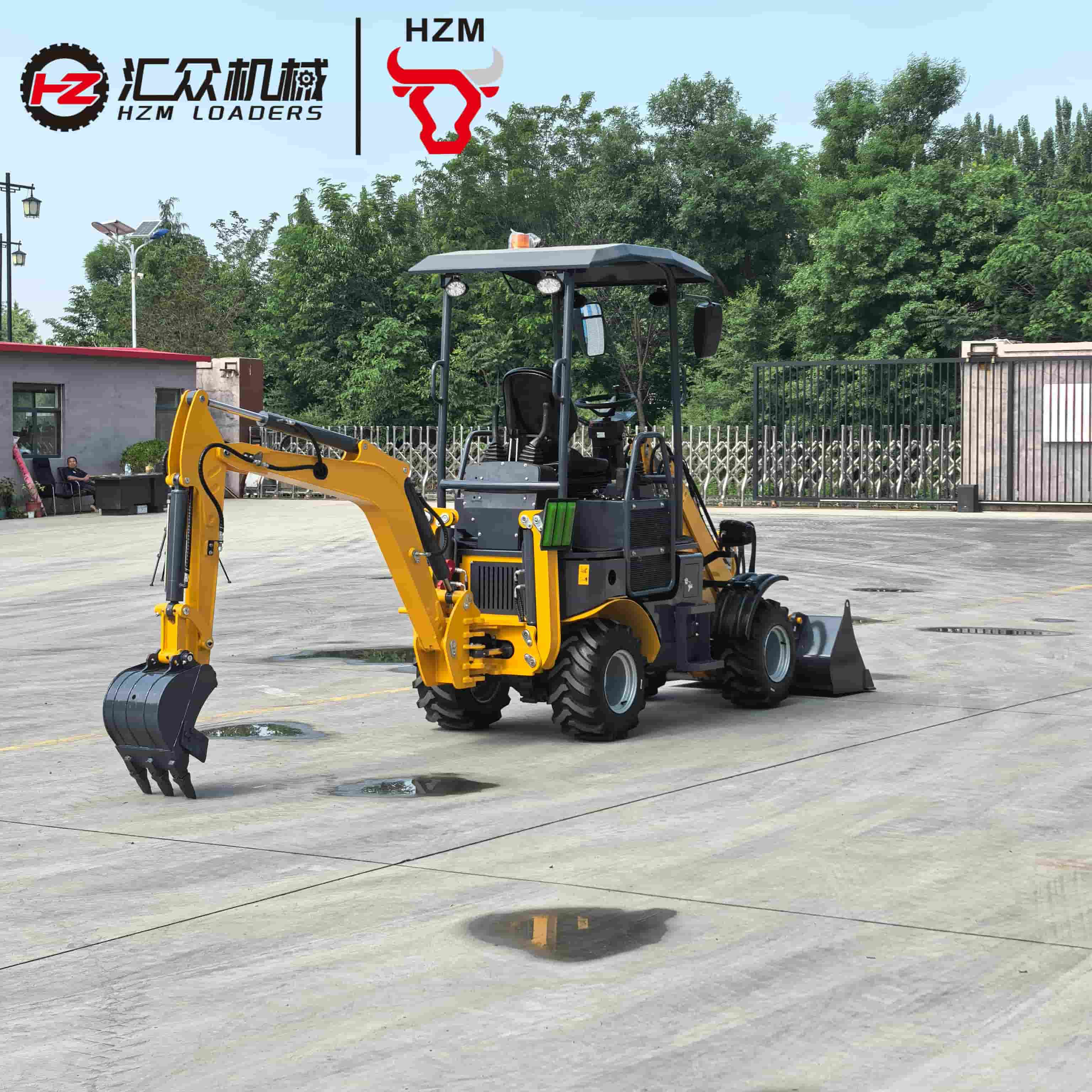

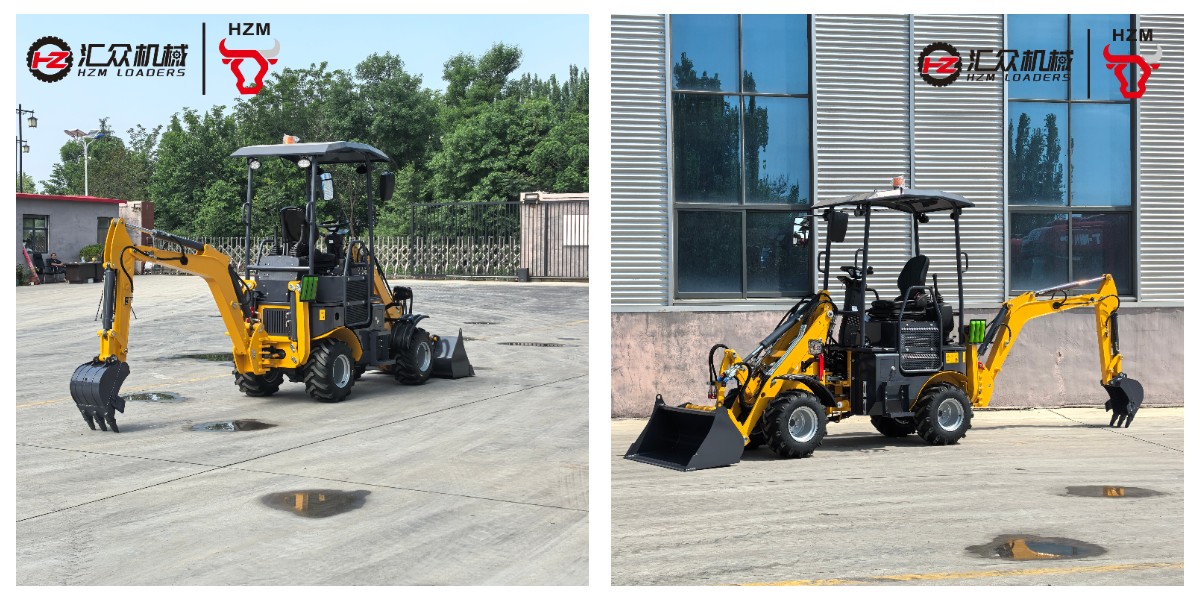

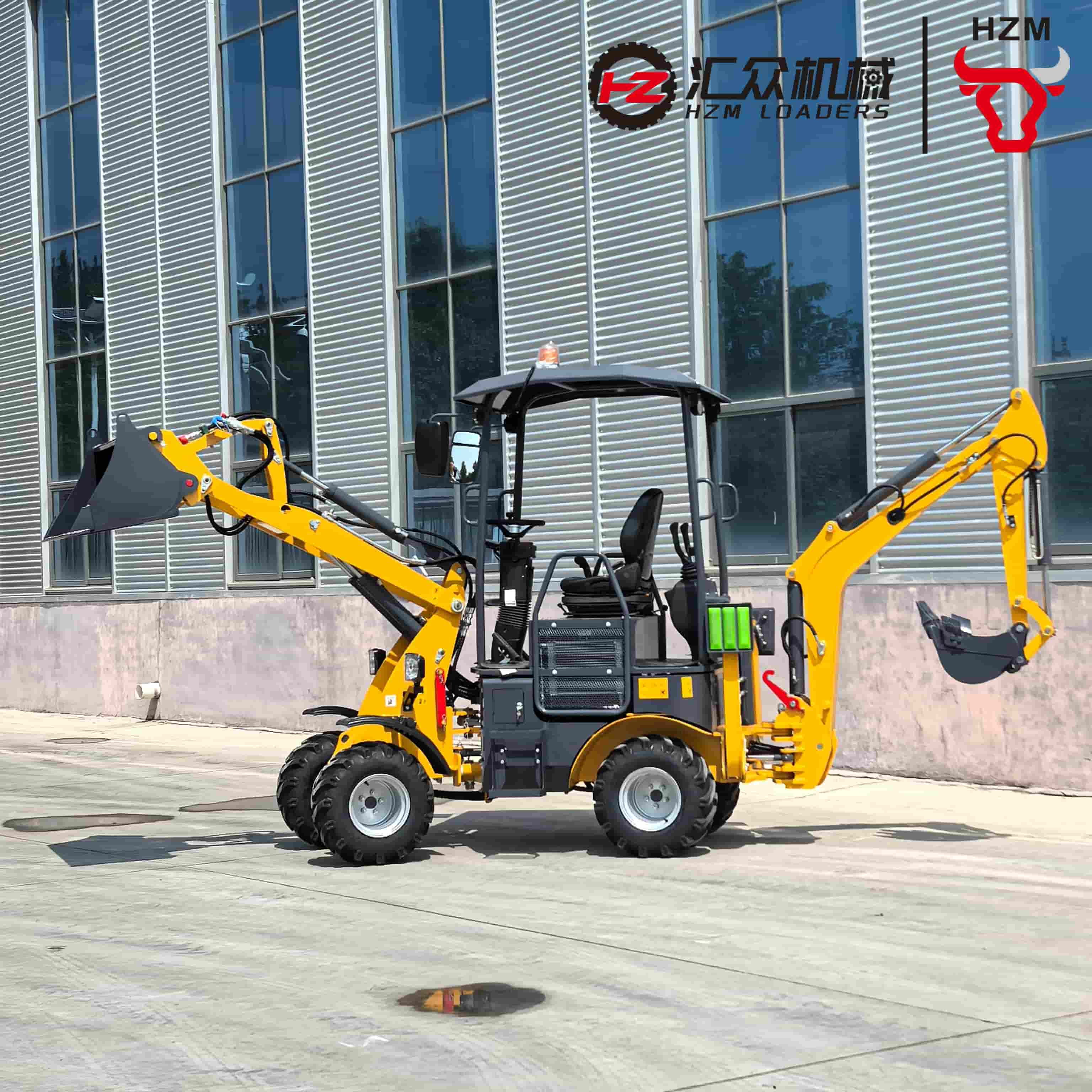

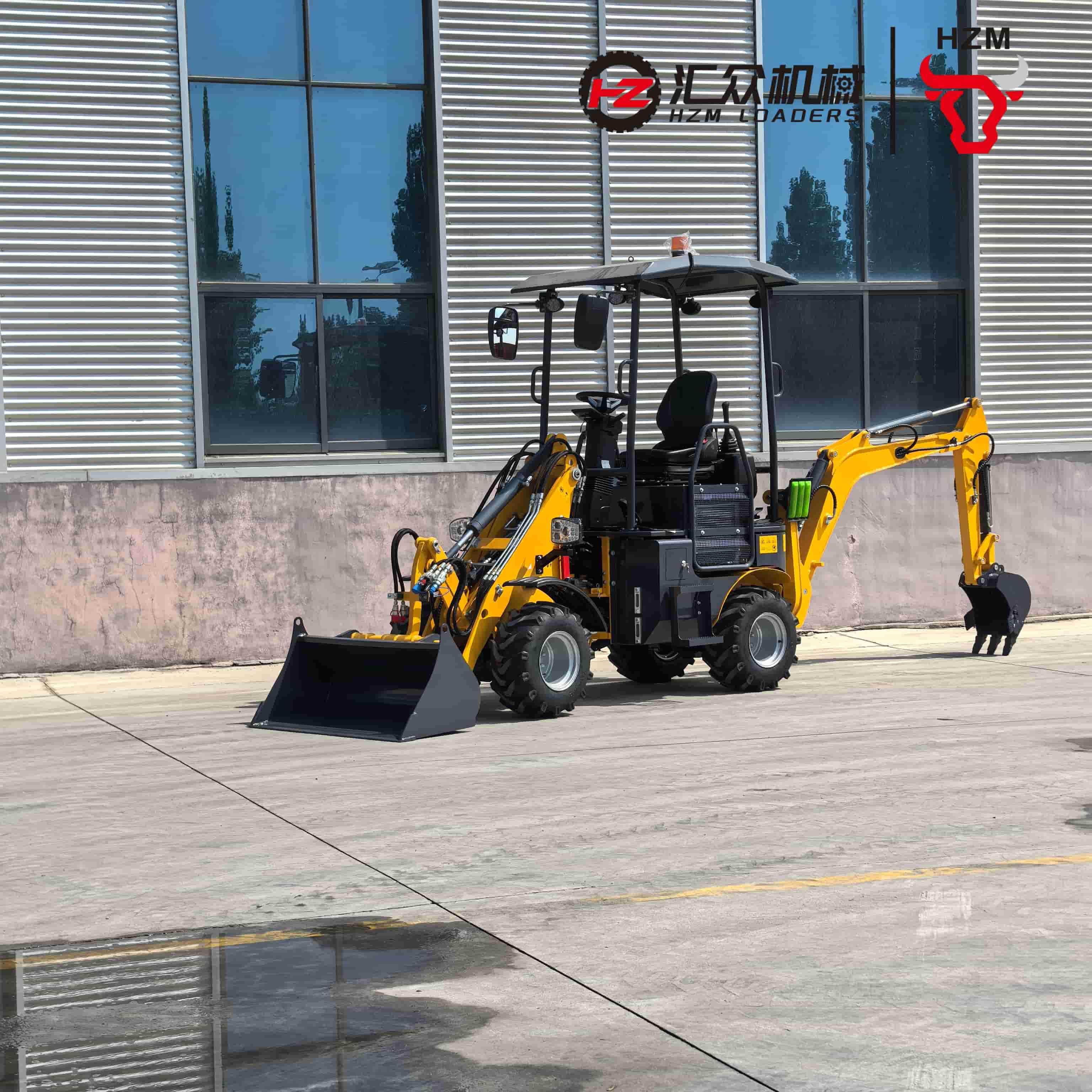

HZM BL750 Small Backhoe Loader Introduction
The new HZM BL750 small backhoe loader features outstanding overall performance with great advantages. It adopts a lightweight design of only 3120kg, equipped with a 600kg rated front load and 0.3m³ bucket capacity, ensuring flexible movement and efficient working ability in narrow sites. Built with a hydrostatic driving system, the machine runs smoothly with sensitive and precise operation. It is standard fitted with a Euro 5 Perkins 18.4KW engine, delivering stable power, low fuel consumption and eco-friendly performance. The electric control joystick enables simple, labor-saving and accurate operation. Upgraded 26*12.00-12 wider and larger tires provide strong grip and excellent adaptability on various rough roads. Standard quick hitch, original bucket and backhoe realize multi-function operation, while matched LED lights support reliable all-weather construction.
Product Details

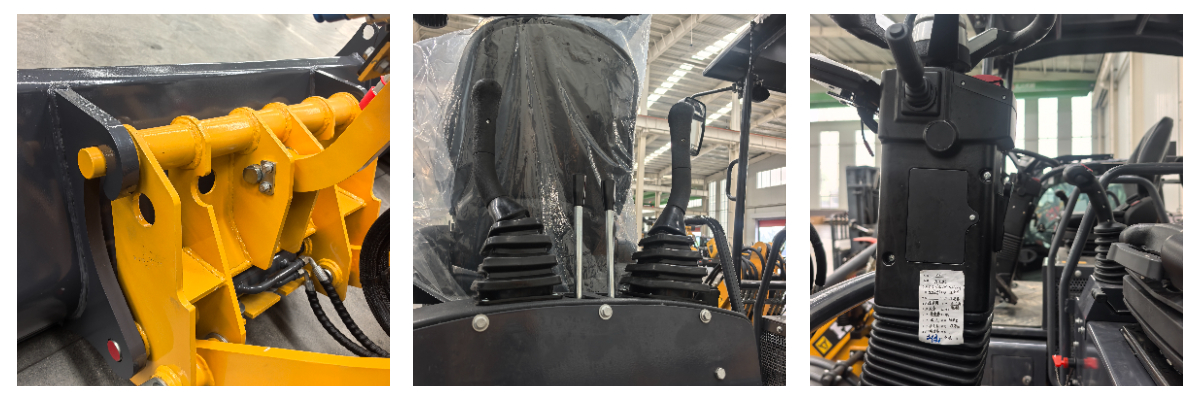

| Quick hitch | Backhoe Joystick | Adjustable Dashboard |
Product Specifications
LOADER | |||
Unit | Value | ||
1 | Max.Travel Speed | km/h | 9.2 |
2 | Wheelbase | mm | 1800 |
3 | Rear Overhang Angle | 0 | 26.5 |
Hydraulic System | |||
Unit | Value | ||
1 | Pump Type | Axial Piston Pump | |
2 | Pressure | bar | 210 |
3 | Flow Rate | L/min | 42 |
4 | Hydraulic Oil Capacity | L | 100 |
DVERALL DIMENSIONS | |||
STANDARD BUCKET | |||
1 | operating Weight(Kg) | 2220 | |
2 | Bucket Capacity(m³) | 0.27 | |
3 | Max.Digging Depth (mm) | 2500 | |
ENGINE | |||
1 | Model | Perkins 403J-11 | |
2 | Displacemen | 1.13L | |
3 | Power | 18.4KW | |
4 | Speed | 2800 rpm | |
Fuel System | |||
Unit | Value | ||
1 | Fuel Tank Capacity | L | 100 |
Dimensions | |||
A | Overall Length | mm | 4950 |
B | Width (by Bucket) | mm | 1550 |
F | Width (by Wheel Track) | mm | 1500 |
C | Overall Height | mm | 2667 |
D | Seat Height | mm | 1360 |
F | Rear Overhang Angle | 。 | 26.5 |
G | Front Overhang Angle | 。 | 46.5 |
Ground Clearance | |||
Working Ranges | |||
Description | Unit | Value | |
R1 | Boom Swing Angle | 88+88 | |
Q | Max.Digging Depth | mm | 2500 |
P | Max.Digging Height | mm | 3340 |
I | Loader Max.Discharge Height | mm | 2520 |
R5 | Min.Inside Turning Radius | mm | 2000 |
N | Digging Depth Below Grade (with Loader Bucket Level | mm | 160 |
